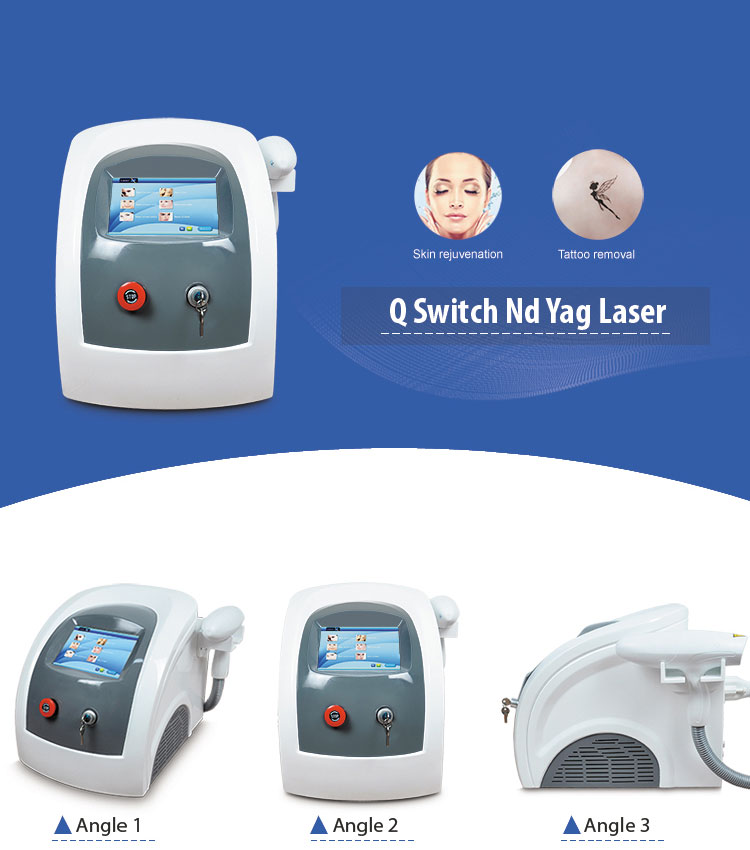

8′ color screen nd yag laser machine


Technical parameter
Description Nd yag laser
Voltage 110V- 240V,      50Hz/60Hz
Output power 500W
Laser Wavelength 1064nm + 532nm + 1320nm
Energy 1-2000mJ (Adjustable)
Pulse width 0-10ns (Adjustable)
Frequency 1-10Hz (Adjustable)
Spot diameter 1 -10mm  (Adjustable)
Frequency 1 – 10Hz  (Adjustable)
Screen size 4.3 inches
Cooling system Water and air cooling
Red aiming point Optional
Treatment ranges:
1. All colors of tattoo removal.
2. Spots removal (freckle,coffee spots,age spots,nevus of Ota).
3. Embroidery lipline.
4. Eyeline,eyebrow pigments removal.
Parts:
The machine includes a yag laser handpiece, a 1064nm tip head probe, a 1320nm black toll tip head probe and a 532nm one, as well as some other parts.
532nm laser probe:Square,emit green laser light,mainly cure the red,green,brown colored tattoos and pigments.
1064nm laser probe:Circular,emit white laser light,mainly cure the black,blue colored tattoos and pigments.
1320nm probe: shrink pores removal, poblackhead removal, skin tightening and whitening, skin rejuvenation, wrinkle removal.


Treatment:

Operation skills for laser tattoo removal system:
Items
times
interval
Notice
eyebrow
1~2
30-60day
Remove eyebrow hair and protect eyeballs
eyelid
1~3
45-60day
Remove eyebrow hair and protect eyeballs
lips outline
1~3
15-45day
use 532mn mirror
Body tattoo
1~4
30-60day
Exude blood is effective
flecks ,aged spot
1~5
15-30day
Exude blood is effective
birth mark
3~7
45-90day
Exude blood is effective
